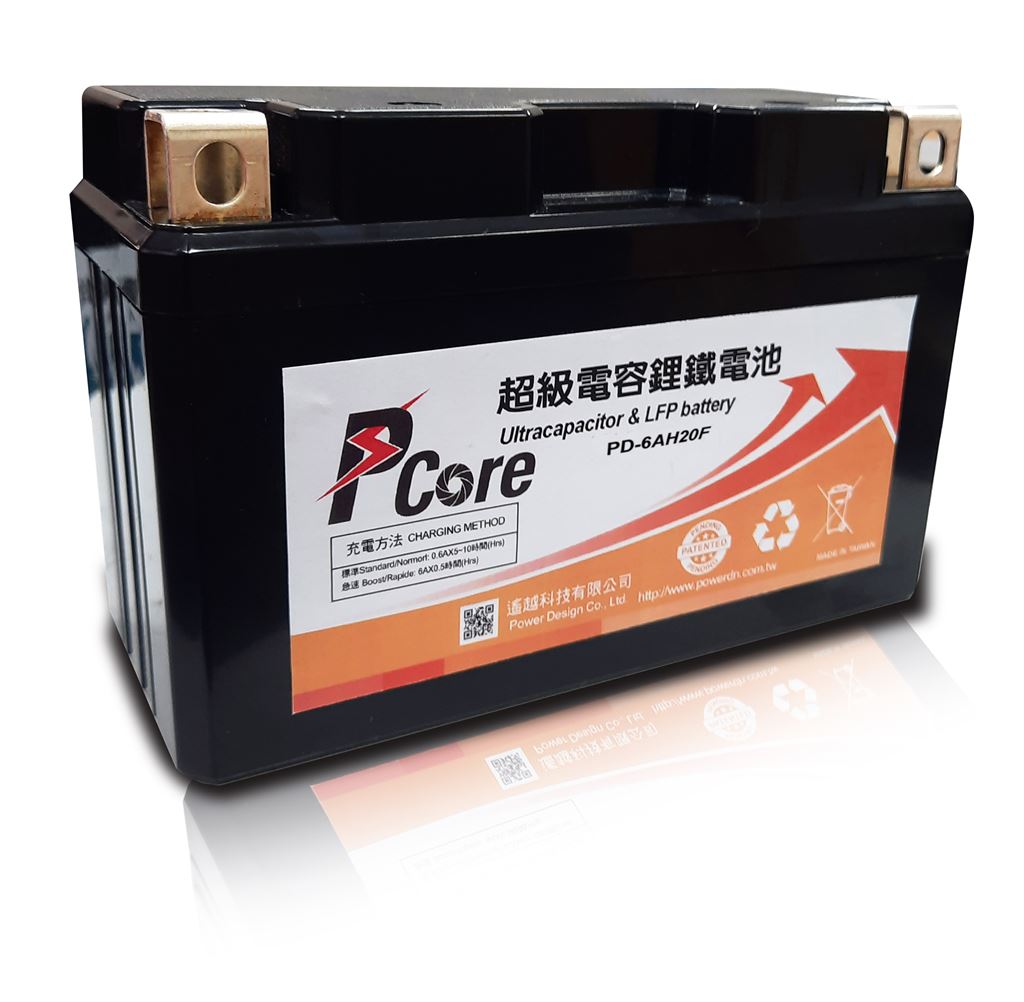

PD6AH20F |
Specification：
Nominal operational
voltage:13.2V
Capacity:6Ah/20F
Dimensions: (7A)
148(L)*63(W)*95(H)mm
Weight: 0.6 Kg
Instantaneous current ≦ 100A
Engine displacement: under 250cc
Automatic short circuit protection |

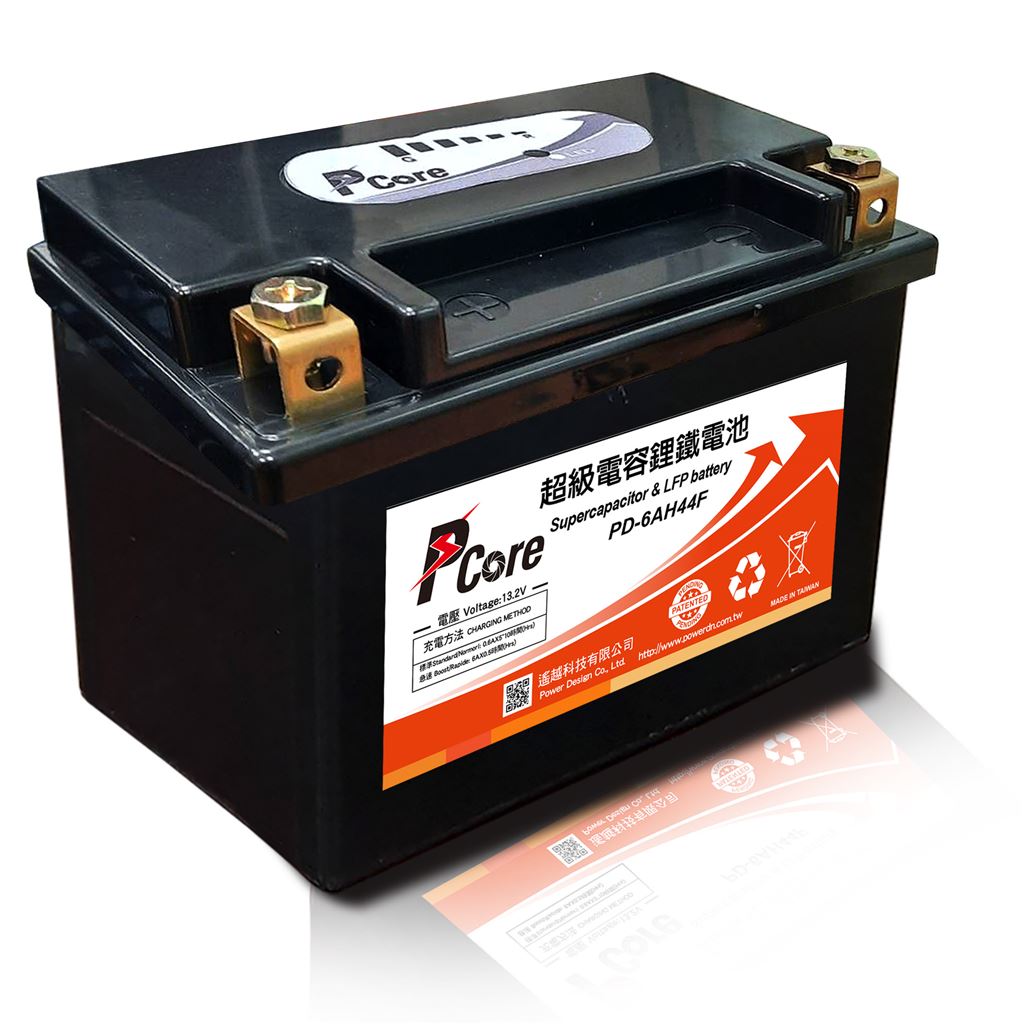

PD6AH44F |
Specification：
Nominal operational
voltage:13.2V
Capacity:6Ah/44F
Dimensions:
148(L)*81(W)*90(H)mm
Weight: 1.1 Kg
Instantaneous current ≦ 140A
Engine displacement: under 650cc
Automatic short circuit protection |

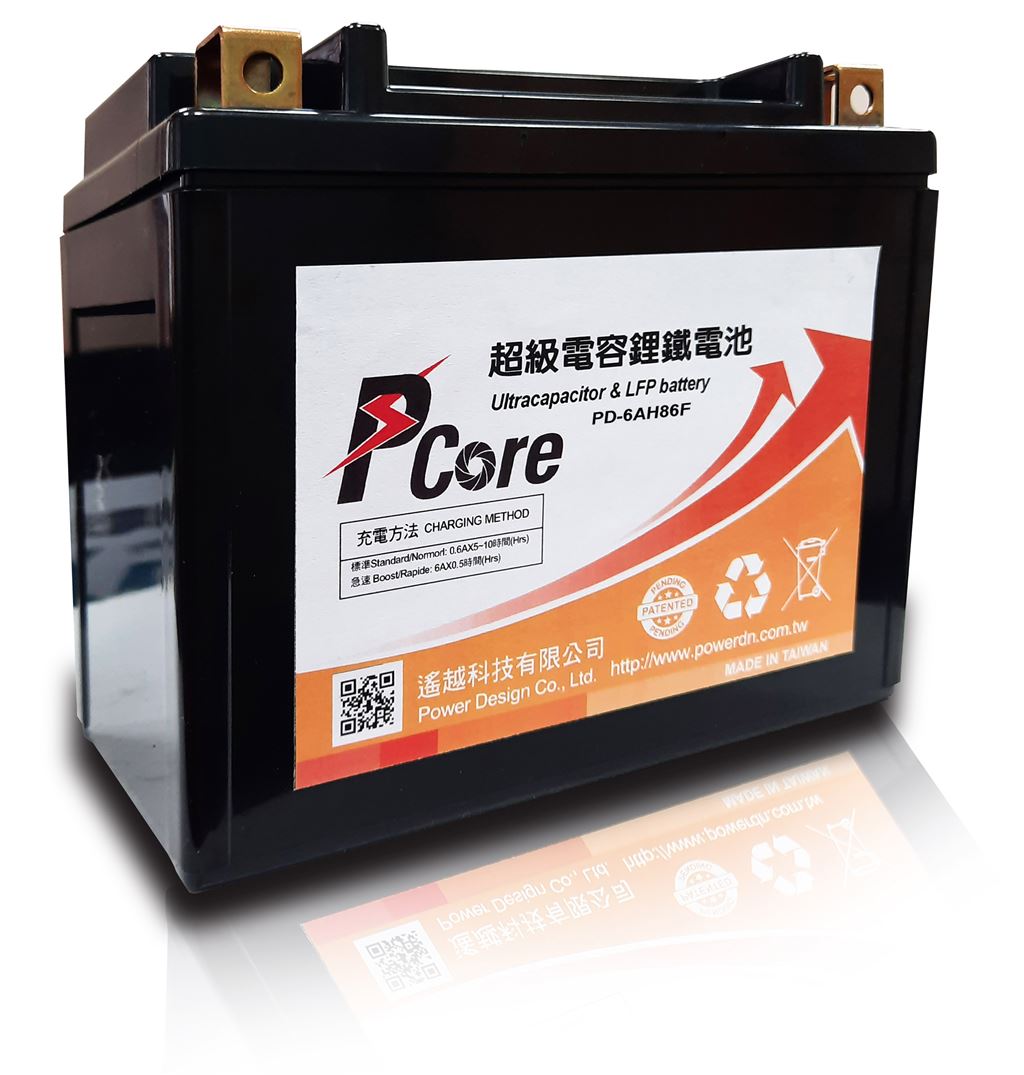

PD6AH86F |
Specification：
Nominal operational
voltage:13.2V
Capacity:6Ah/86F
Dimensions: (14H)
148(L)*81(W)*128(H)mm
Weight: 1.6 Kg
Instantaneous current ≦ 280A
Engine displacement: under 1,200cc
Automatic short circuit protection
|

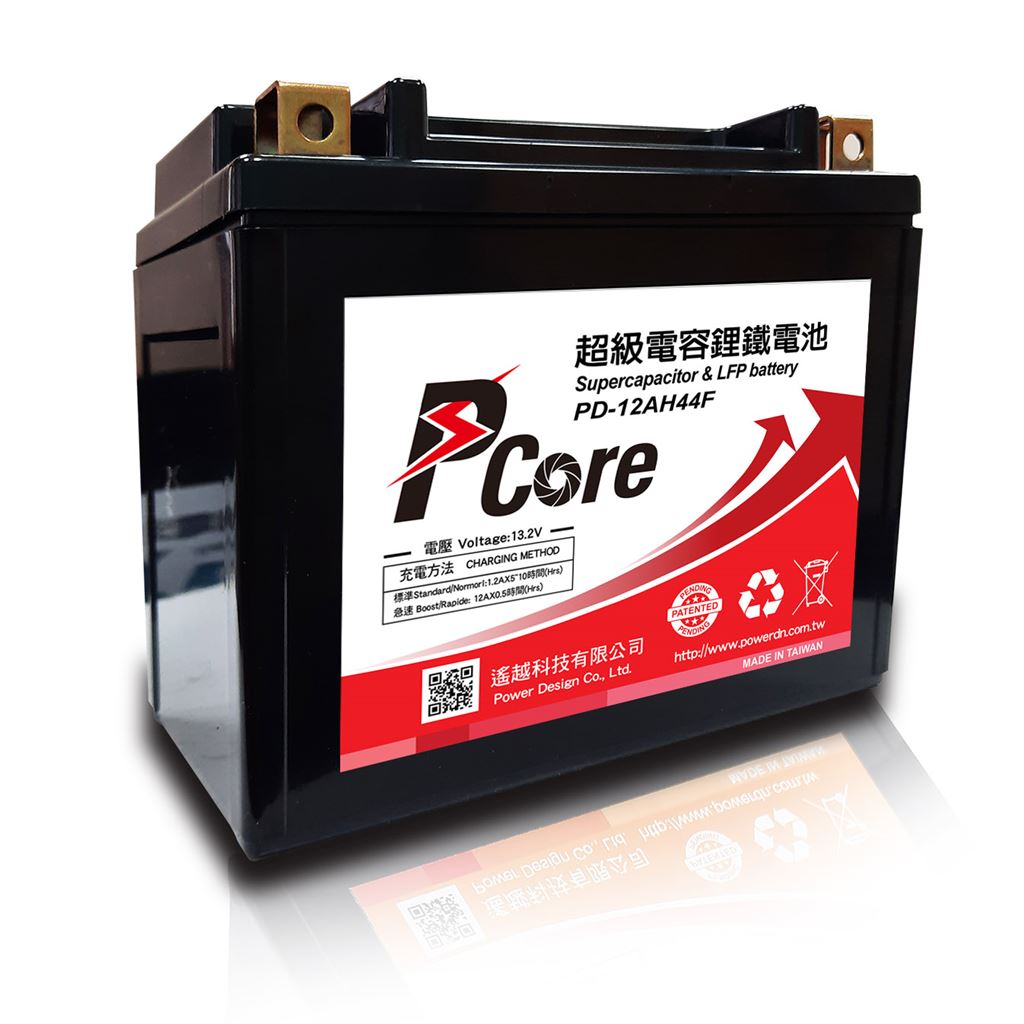

PD12AH44F |
Specification：
Nominal operational
voltage:13.2V
Capacity:12Ah/44F
Dimensions: (14H)
148(L)*81(W)*128(H)mm
Weight: 1.9 Kg
Instantaneous current ≦ 160A
Engine displacement: under 850cc
Automatic short circuit protection
|

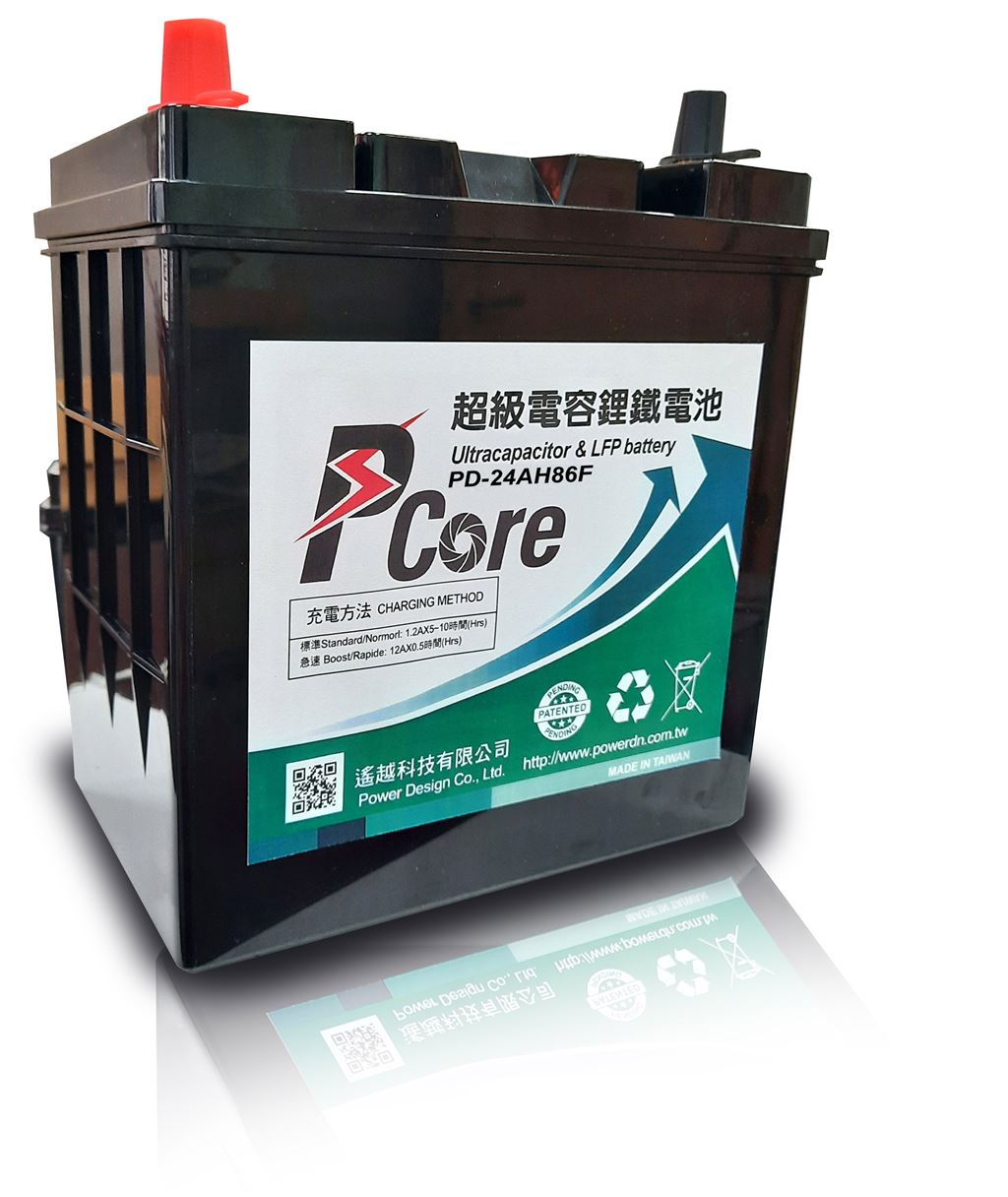

PD24AH86F(J) |
Specification：
Nominal operational
voltage:13.2V
Capacity:24Ah/86F
Dimensions:
230(L)*123(W)*200(H)mm
Weight: 4.2 Kg
Instantaneous current ≦ 380A
Engine displacement: under 2,000cc
Automatic short circuit protection
|
.jpg)

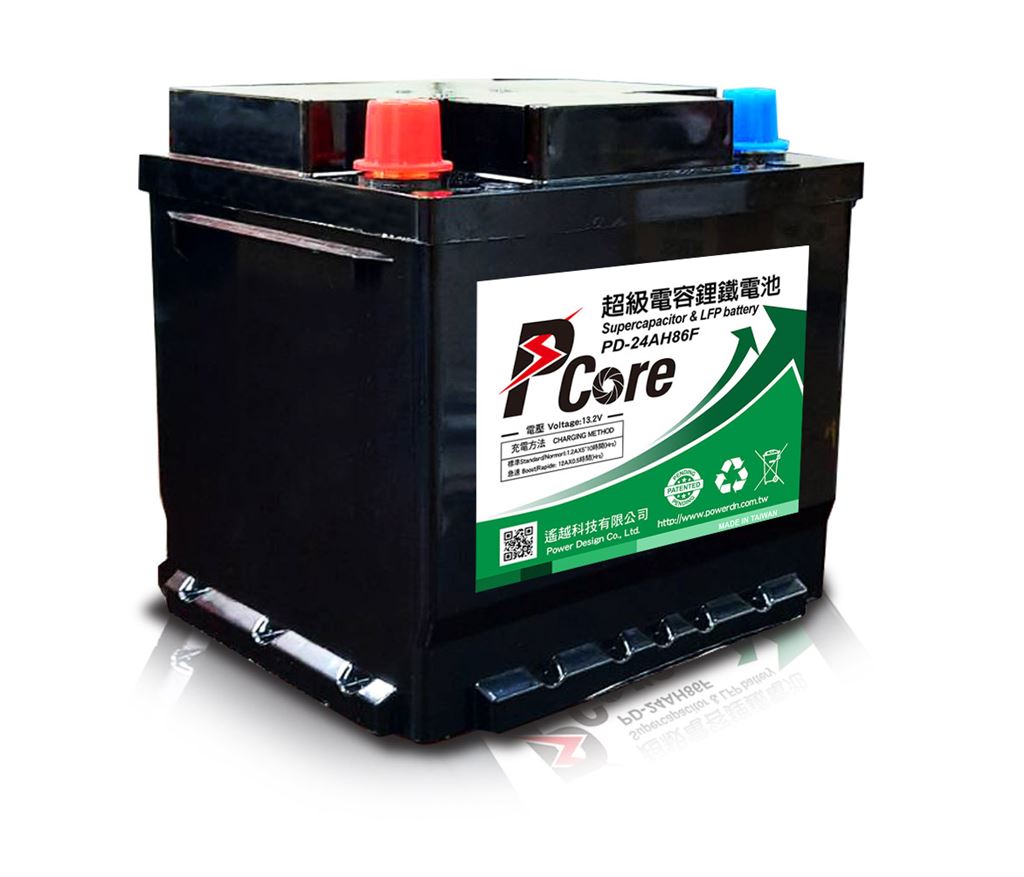

PD24AH86F(E) |
Specification：
Nominal operational
voltage:13.2V
Capacity:24Ah/86F
Dimensions:
93(L)*165(W)*190(H)mm
Weight: 4.2 Kg
Instantaneous current ≦ 380A
Engine displacement: under 2,000cc
Automatic short circuit protection |

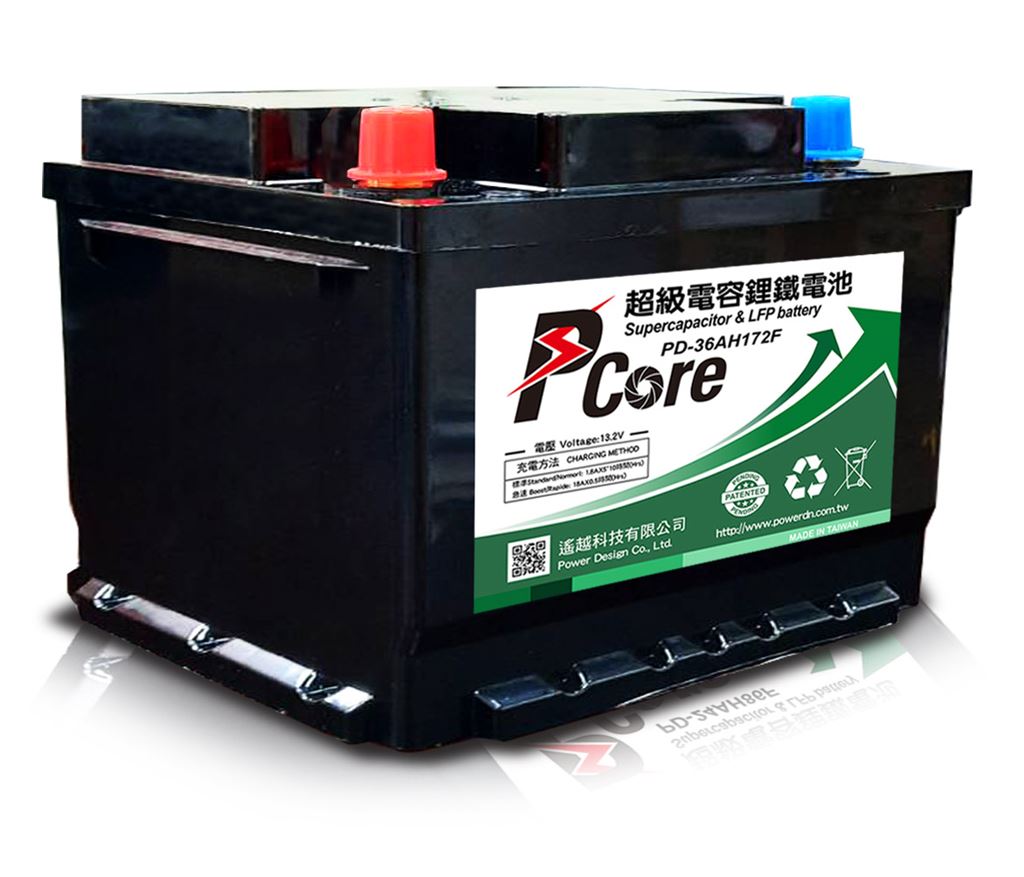

PD36AH172F |
Specification：
Nominal operational
voltage:13.2V
Capacity:36Ah/172F
Dimensions:
260(L)*165(W)*195(H)mm
Weight: 6.2 Kg
Instantaneous current ≦ 750A
Engine displacement: under 4,000cc
Automatic short circuit protection |

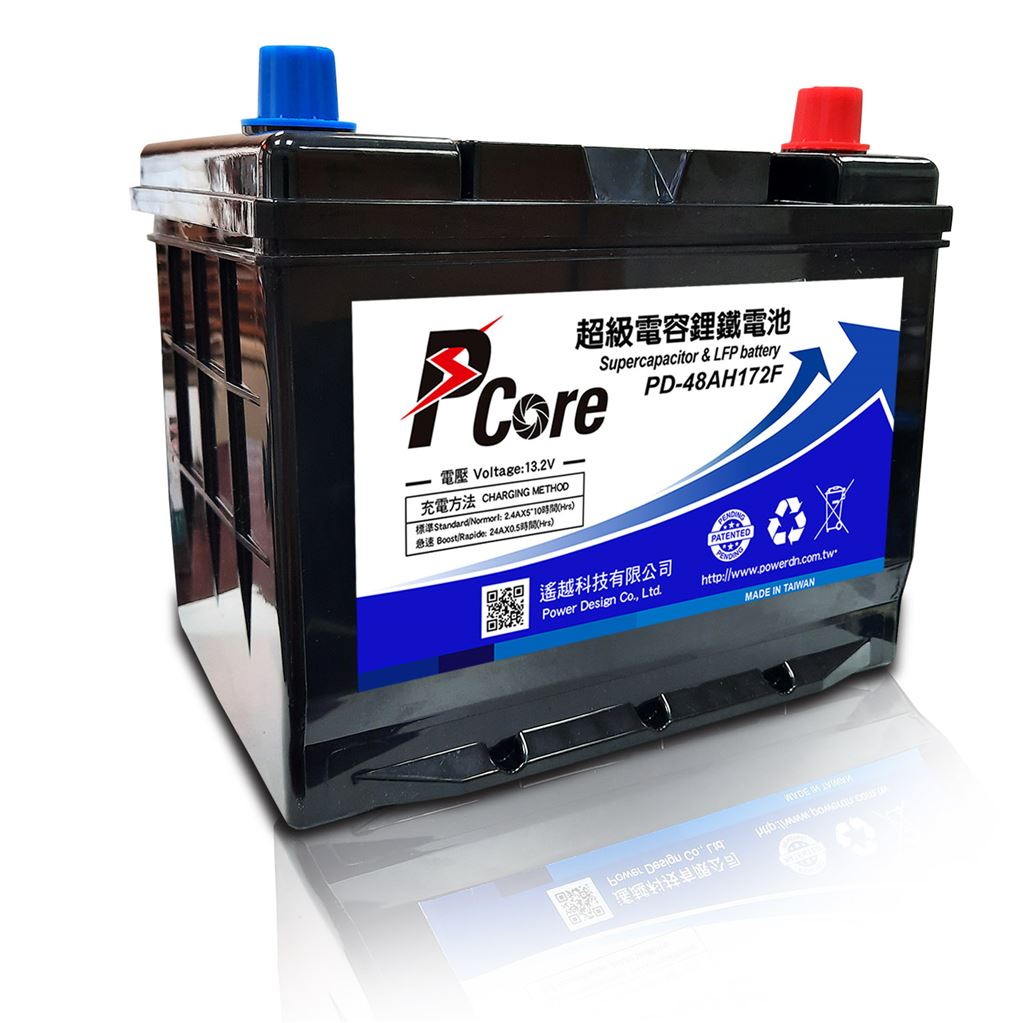

PD48AH172F (J) or (E) |
Specification：
Nominal operational
voltage:13.2V
Capacity:48Ah/172F
Dimensions:
300(L)*68(W)*195(H)mm
Weight: 7.8 Kg
Instantaneous current ≦ 820A
Engine displacement: For trucks
Automatic short circuit protection
|

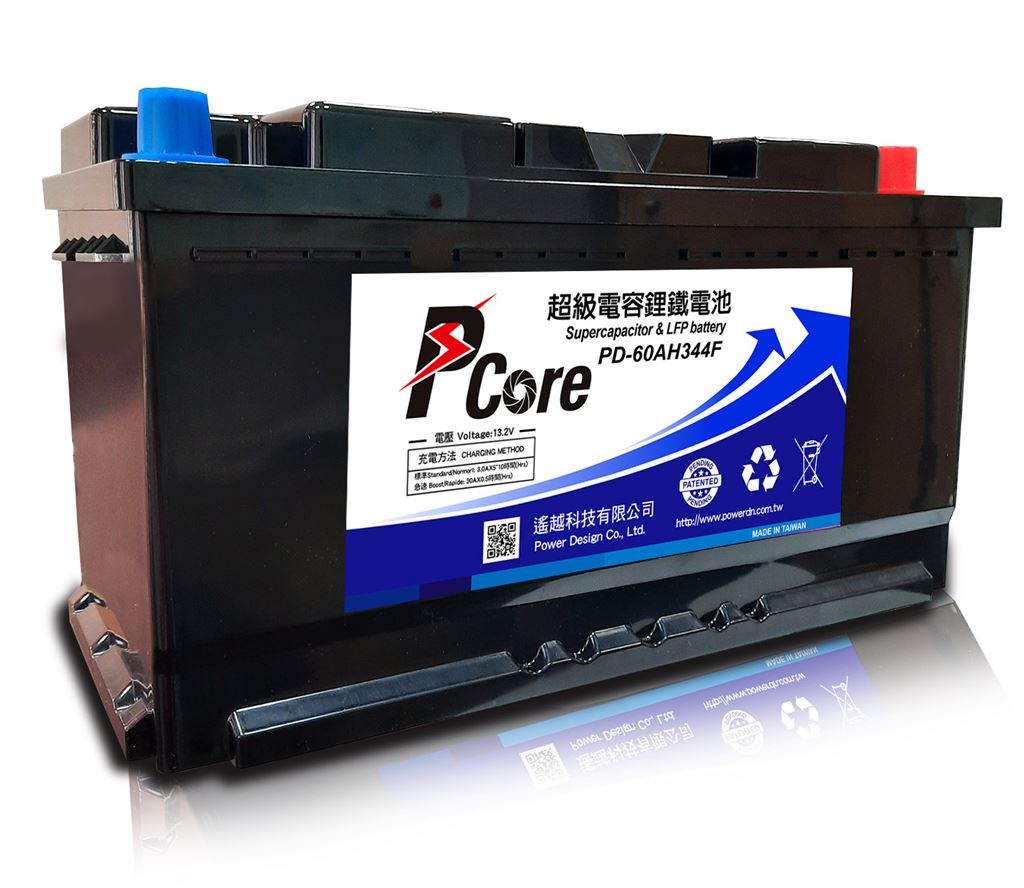

PD60AH344F |
Specification：
Nominal operational
voltage:13.2V
Capacity:60Ah/344F
Dimensions:
383(L)*170(W)*190(H)mm
Weight: 10.2 Kg
Instantaneous current ≦ 1,200A
Engine displacement: For tourist bus
Automatic short circuit protection
|
